Experience Where it Counts
Drilling & Field Operations
Every drilling project presents different ground conditions, access requirements, depths, logistics, and operational challenges. LSG Drilling combines experienced crews, capable equipment, field support, and responsive project coordination to build drilling operations around the needs of each project.
Our capabilities are designed to support mineral exploration and core drilling programs from mobilization through active field operations and project completion.
Equipment, tooling, and field operations configured around exploration objectives, ground conditions, and core recovery requirements.
Down-hole survey capability supporting accurate borehole orientation and field information throughout active drilling programs.
Equipment and field planning designed to support projects where access, transportation, terrain, and logistics require additional preparation.
Support equipment, project coordination, communication, and responsive field resources designed to keep drilling operations moving.
Remote Capabilities
Built for Beyond the Road

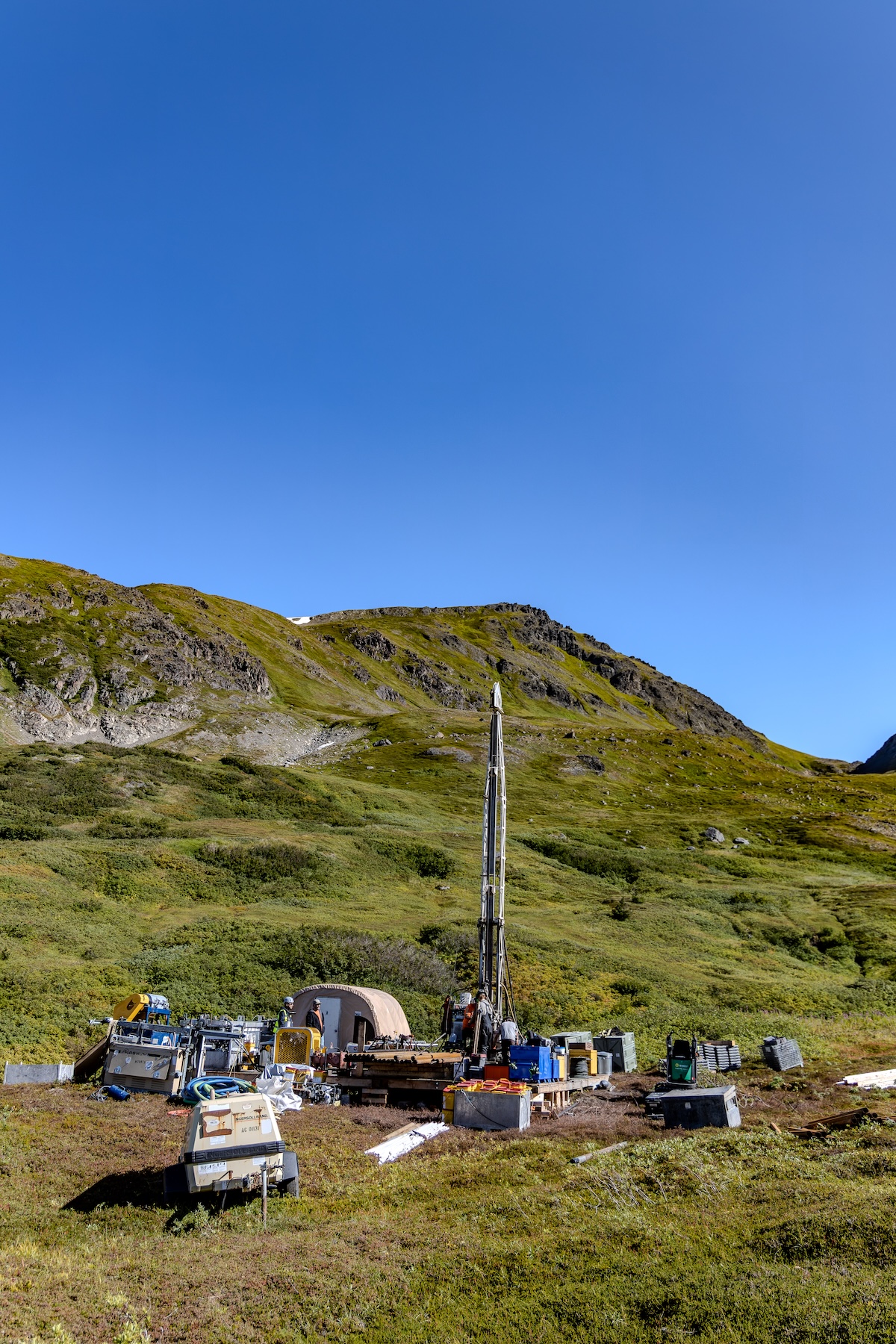

Some drilling projects begin where conventional access ends. LSG is prepared to support operations where terrain, distance, weather, transportation, or site access create additional logistical demands.
From conventional mobilization to remote field operations, LSG works with project teams to develop an approach based around the actual conditions of the site.
Drilling Rigs

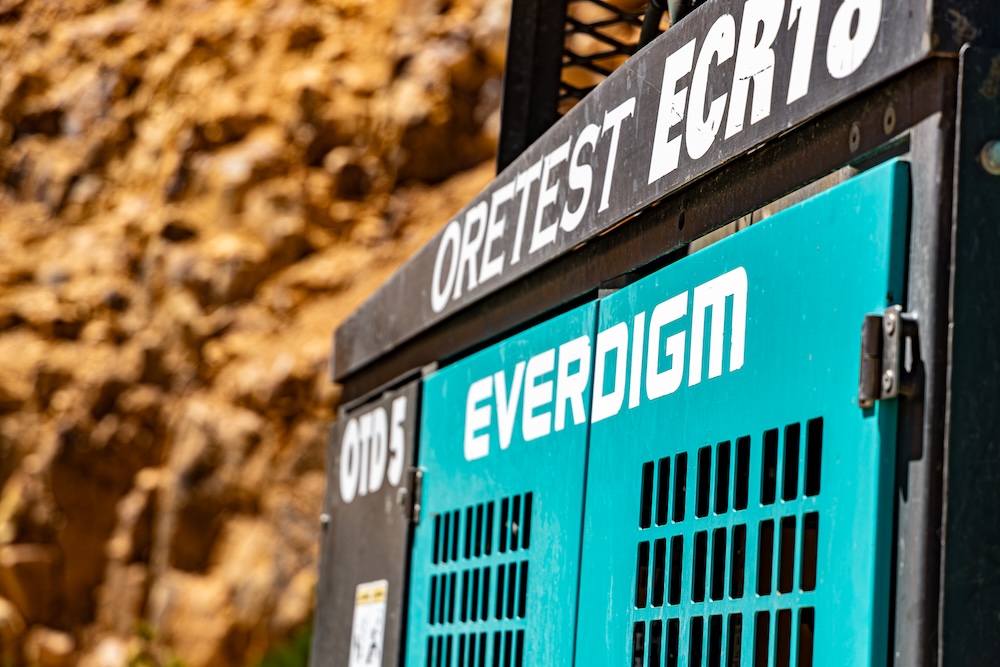

EverDigm ECR18 Core Drill
Field-Proven Core Drilling Capability
The EVERDIGM ECR18 provides LSG Drilling with a versatile platform for professional core drilling operations in mineral exploration and demanding field environments.
Currently deployed on active exploration projects, the ECR18 supports LSG’s focus on dependable drilling performance, experienced field execution, and adaptability as ground and project conditions change.
| Technical Specification | Value |
|---|---|
| Maximum Drilling Depth | 2,250 m (7,382 ft) B-Wireline; 1,780 m N-Wireline; 1,180 m H-Wireline; 800 m P-Wireline |
| Drill Rod / Core Size Supported | B, N, H & P Wireline Systems; up to PW rods (139.7 mm / 5.5 in) |
| Hole Diameter Range | BQ to PQ Wireline Core Drilling |
| Mast / Feed length | 3.5 m (11.5 ft) Feed Travel; 6 m (19.7 ft) Rod Pull Length |
| Pullback Capacity | 171.2 kN (38,481 lb) |
| Rotation Torque | Up to 5,541 Nm (4,086 lb-ft) |
| Rotation Speed | 128-1,200 RPM (4-speed transmission) |
| Rig Weight | Approximately 9,000 kg (19,840 lb) depending on configuration |
| Dimensions | Varies by configuration and setup (manufacturer recommends referencing machine layout drawing) |
| Engine / Power | Cummins 6CTAA8.3C Tier II Diesel, 193 kW (260 hp), 8.3 L 6-cylinder |
| Mobility / Carrier | Track-Mounted Hydraulic Crawler Carrier with hydraulic leveling jacks |
| Angle Drilling Capacity | 45° to 90° |
Boart Longyear LF70 Core Drill
Field-Proven Core Drilling Capability
The Boart Longyear LF70 Core Drill provides LSG Drilling with a proven, modular drilling platform designed for professional diamond core drilling and demanding exploration programs. Its compact, component-based configuration makes the LF70 particularly well suited for projects where transportation, access, and mobilization requirements demand greater flexibility.
The rig can be broken down for transport into remote locations, including helicopter-supported operations, while still providing the drilling capability required for productive core programs in challenging field environments.
| Technical Specification | Value |
|---|---|
| Maximum Drilling Depth | 895 m (2,936 ft) NRQ W-Wall Core Drilling |
| Drill Rod / Core Size Supported | BQ, NQ, HQ & PQ Wireline Systems |
| Hole Diameter Range | BQ to PQ Wireline Core Drilling |
| Mast / Feed length | 1.83 m (6.0 ft) Feed Stroke | 6.0 m (20 ft) Rod Pull Length |
| Pullback Capacity | 62.9 kN (14,137 lb) |
| Rotation Torque | Up to 6,060 Nm (4,470 lb-ft) with PQ Drill Head |
| Rotation Speed | Up to 1,050 RPM (4-Speed Transmission) |
| Rig Weight | Approximately 4,095 kg (9,028 lb) Total Rig Weight |
| Dimensions | Modular 7-Section Flyable Configuration |
| Engine / Power | Cummins QSB 4.5L Diesel | 110 kW (148 hp) |
| Mobility / Carrier | Fly-Capable Modular Drill System (Helicopter Transportable) |
| Angle Drilling Capacity | 45° to 90° |
Boart Longyear Track Mount LF70 Core Drill
Field-Proven Core Drilling Capability
The Boart Longyear Track Mount LF70 Core Drill combines the proven drilling capability of the LF70 platform with the mobility and stability of a track-mounted configuration. Designed for efficient movement across active project sites, the track system allows LSG crews to reposition the drill between locations while maintaining a capable platform for professional diamond core drilling operations.
This configuration is well suited for exploration programs requiring multiple drill setups, changing locations, and reliable field mobility without sacrificing the performance and versatility of the LF70 drilling system.
| Technical Specification | Value |
|---|---|
| Maximum Drilling Depth | 895 m (2,936 ft) NRQ W-Wall Core Drilling |
| Drill Rod / Core Size Supported | BQ, NQ, HQ & PQ Wireline Systems |
| Hole Diameter Range | BQ to PQ Wireline Core Drilling |
| Mast / Feed length | 1.83 m (6.0 ft) Feed Stroke | 6.0 m (20 ft) Rod Pull Length |
| Pullback Capacity | 62.9 kN (14,137 lb) |
| Rotation Torque | Up to 6,060 Nm (4,470 lb-ft) with PQ Drill Head |
| Rotation Speed | Up to 1,050 RPM (4-Speed Transmission) |
| Rig Weight | Approximately 4,095 kg (9,028 lb) Total Rig Weight |
| Dimensions | Modular 7-Section Flyable Configuration |
| Engine / Power | Cummins QSB 4.5L Diesel | 110 kW (148 hp) |
| Mobility / Carrier | Track Mounted |
| Angle Drilling Capacity | 45° to 90° |
